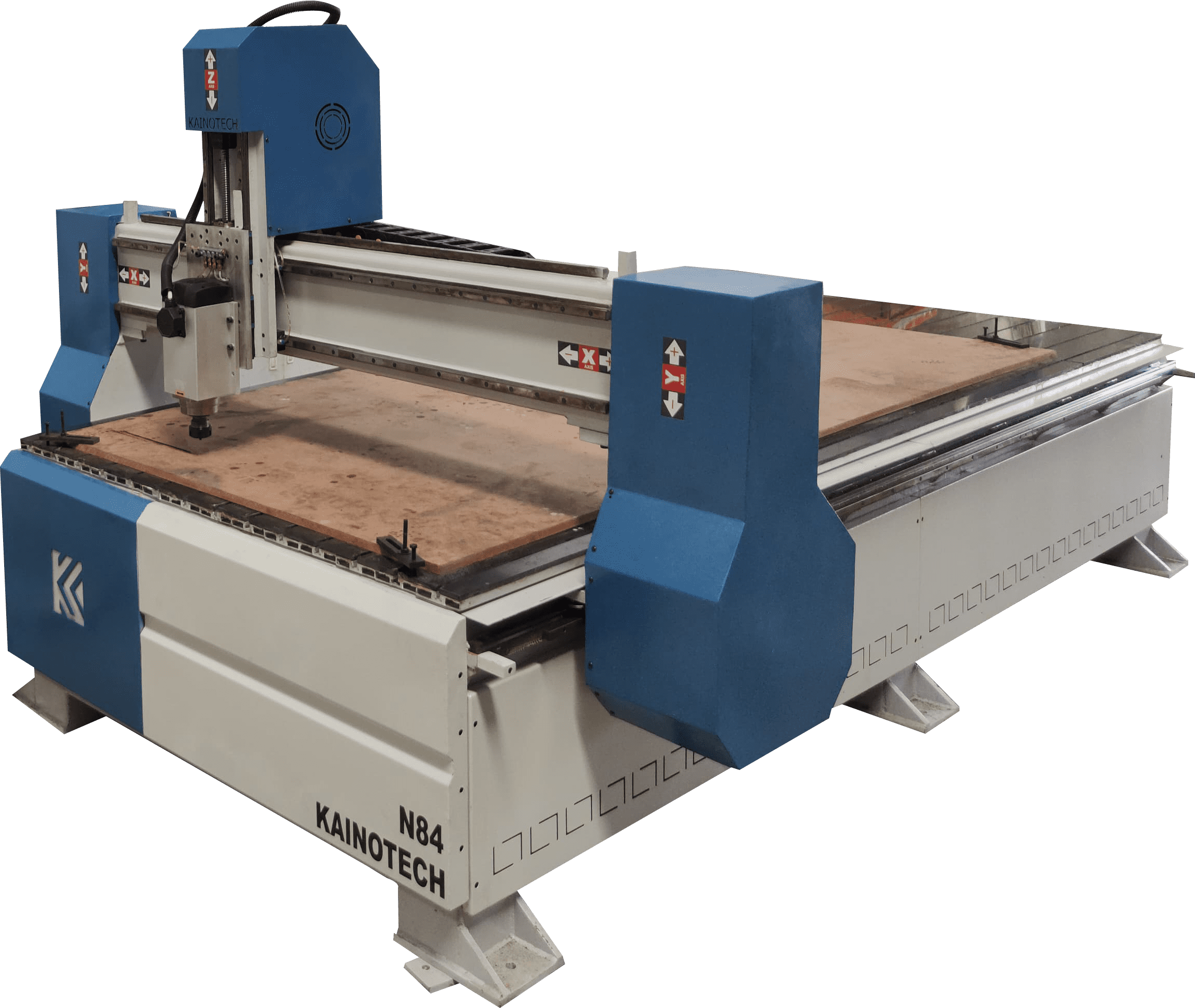

CNC ROUTER
Unleash Precision and Creativity with Our High-Performance CNC Router Machine
Salient Features
- Heavy duty body designed to take maximum Material loads.
- Equipped with Helical Rack and Gear system to achieve speed and accuracy.
- Z axis equipped with high accuracy Ball screw for a minute detailed carving
Our masterpiece for your success
An overview of key features.
Dimension of CNC Router
CNC Router Specification
| Specifications | STEPMASTER 84 | EASYSERVO+ 84 | EASYSERVO+ 84 |
|---|---|---|---|
| XYZ WORKING AREA | 2500 X 1300 X 200 MM | 2500 X 1300 X 200 MM | 2500 X 1300 X 200 MM |
| SPINDLE MOTOR | 3.5KW/4.5KW/6KW | 3.5KW/4.5KW/6KW | 3.5KW/4.5KW/6KW |
| X AND Y AXIS MOTOR | 86KG/CM STEPPER | 86KG/CM EASY SERVO WITH DIGITAL DRIVER | 750 W SERVO WITH DIGITAL DRIVER |
| Z AXIS MOTOR | 86KG/CM STEPPER | 86KG/CM EASY SERVO | 1 KW SERVO WITH BREAK |
| AXIS DRIVER | BELT AND PULLEY | BELT AND PULLEY | GEARBOX |
| X AND Y MOVEMENT | RACK AND PINION | RACK AND PINION | RACK AND PINION |
| Z AXIS MOVEMENT | BALL SCREW | BALL SCREW | BALL SCREW |
| RACK DIMENSIONS | 17MM | 17MM | 24MM |
| BALL SCREW DIMENSIONS | 20 MM | 20MM | 25MM |
| LM GUIDE | 20 MM | 20 MM | 25 MM |
| VACUUM BED | OPTIONAL | OPTIONAL | OPTIONAL |
| OPERATING SYSTEM | RICH AUTO/WEIHONG/NC STUDIO | RICH AUTO/WEIHONG/NC STUDIO | RICH AUTO/WEIHONG/NC STUDIO |
| OVERALL DIMENSIONS | 3100 X 2000 X 1850 MM | 3100 X 2000 X 1850 MM | 3100 X 2000 X 1850 MM |
| APPROX WEIGHT | 950 TO 1100 KG | ||
Download Catalog

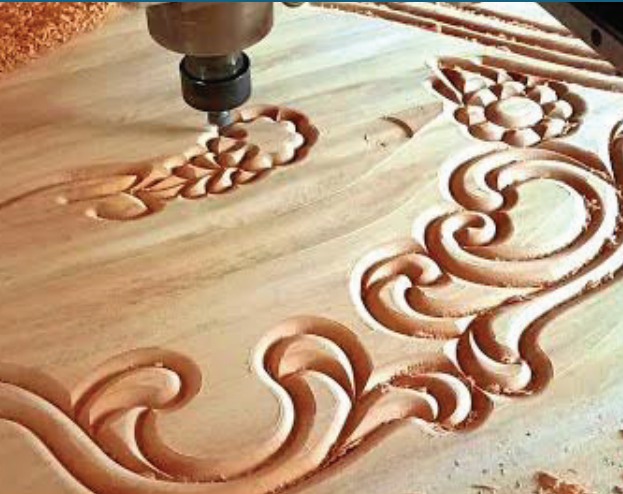

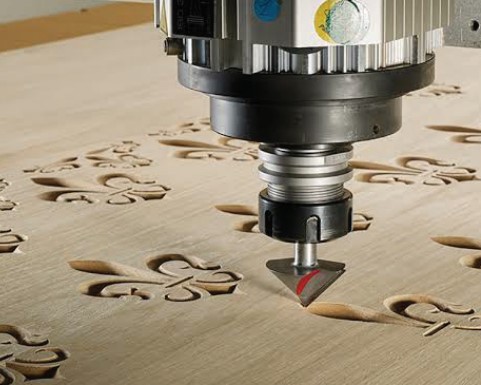

A CNC router machine is a versatile tool designed for precision cutting, engraving, and shaping of various materials such as wood, plastic, metal, and composites. It is ideal for industries like woodworking, signage, furniture manufacturing, and prototyping. Controlled by advanced computer software, the machine ensures highly accurate, consistent cuts and intricate designs.
