Automatic Edge Bender
Precision and Speed in Every Edge – Elevate Your Craft with Our Automatic Edge Bender
Salient Features
- High-Speed Operation
- Precision Control
- Automated Edge Feeding
- Versatile Compatibility
- Smooth Finishing
- User-Friendly Interface
- Robust Build
Our masterpiece for your success
An overview of key features.
Fine Trimming
The R-knife trims off the excess sealing strips to form rounded corners, making the trim more beautiful, and the heavy- duty KDT type unit is highly stable in structure.

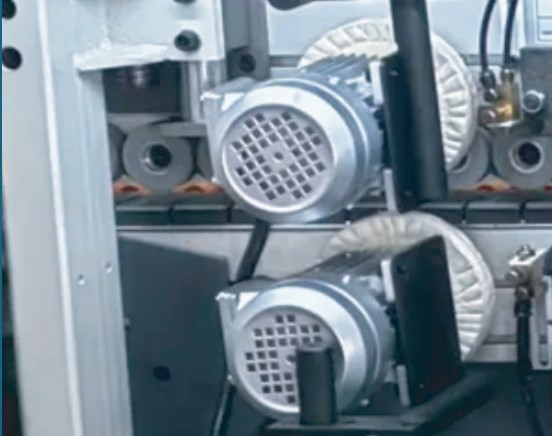

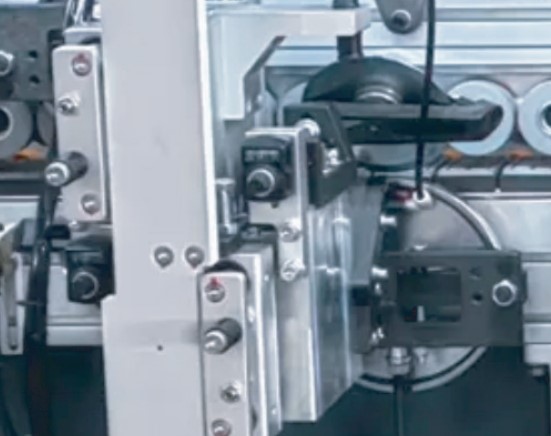

Scraping & Buffing
Super carbide R-knife scrapes the fine lines of the sealing strip to make it round and smooth. The heavy-duty KDT type unit has a high structural stability

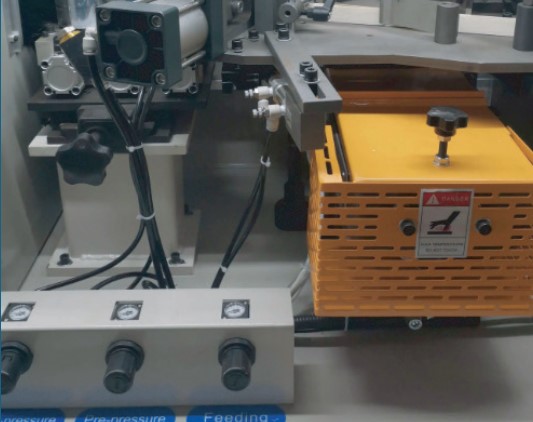

Gluing
The glue pot glue shaft seal is stable without glue seepage and has a large glue loading capacity. And with Teflon coating,quick- change structure.
Multy Layer Board
The cloth wheels quickly polish the edges of the sealing strip for a more rounded and beautiful finish.

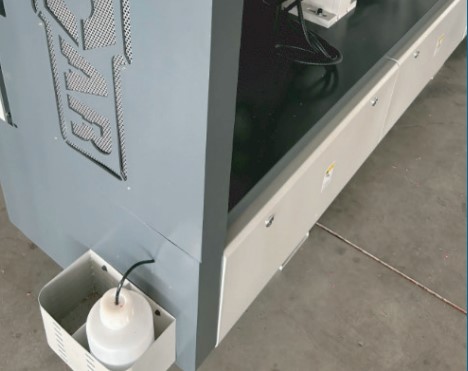

Cleaning Device
Cleaning the residual glue of the board, sealing effect is more perfect.

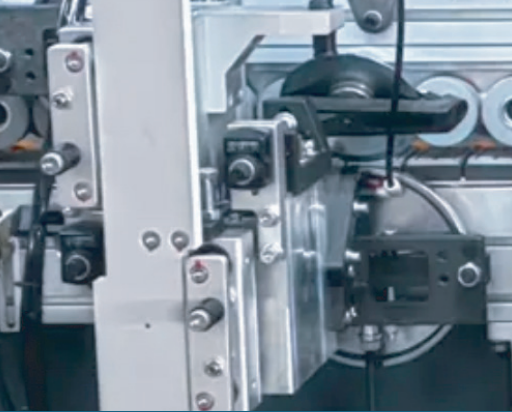

End Cutting
The regulator with backflow function is adopted, together with the self-designed air piping, which makes the stability performance remarkable
Dimension of Automatic Edge Bender
Automatic Edge Bender Specification
| Specifications | EDGEX5 |
|---|---|
| Panel Length | MIN. 140MM |
| Panel Width | 1.5HP |
| Panel Thickness | 10-60 mm |
| Edge Thickness | 0.4 – 3MM |
| Feeding Speed | 16M / Min |
| Working Pressure | 0.7 Mpa |
| Net Weight | 1050Kg |
| Motor Power | 7.5KW |
| Overall Size | 3030*750*12 |
Download Catalog
An automatic edge bender machine is designed to apply edge banding with speed and precision, perfect for large-scale woodworking and furniture production. It efficiently applies edge materials like PVC, ABS, and wood veneer to panels, enhancing their appearance and durability. With features like automated edge feeding, fine trimming, and digital control systems, the machine ensures seamless, high-quality finishes.
